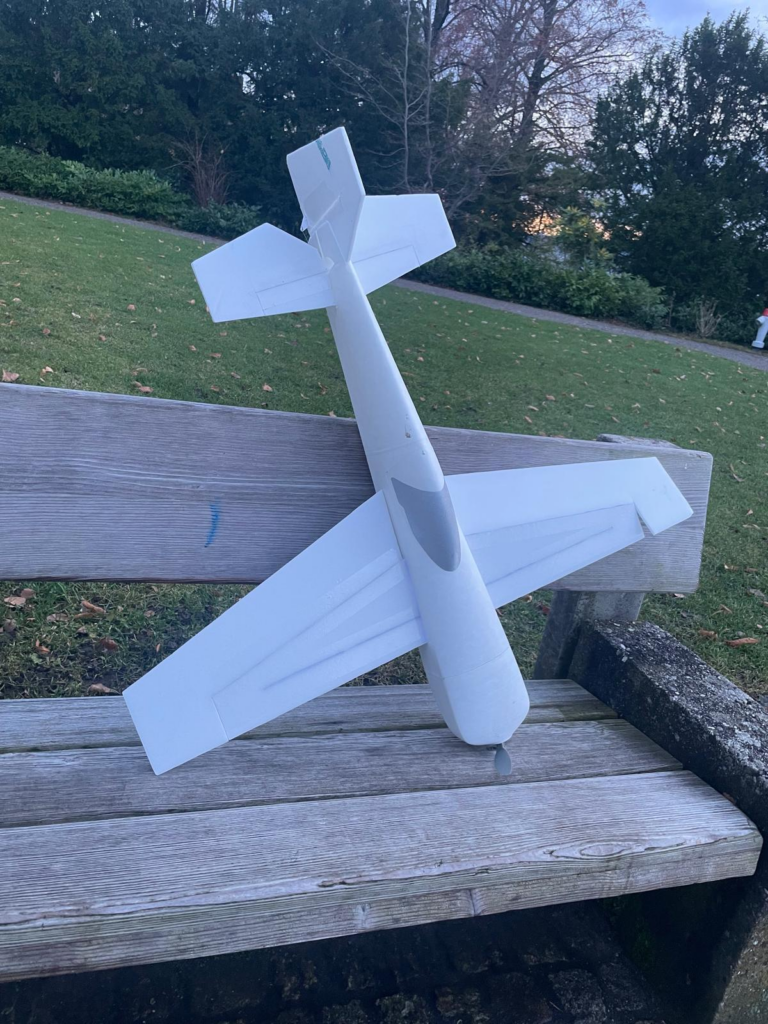

This indoor Edge is a fun and quick project for the winter season. The fuselage is 3D-printed from ColorFabb LW-PLA at 65% flow. The infill used is specified in the name of each respective part. The wings and rudder are made from 6 mm Depron foam and reinforced with a 6 mm CFK tube. The plane is powered by a Racing Drone 2206 2300 KV motor on a 35 A ESC with a 3S 500 mAh battery and uses four 5 g servos.
I suggest reinforcing the motor plate with plywood.
The hinges are cut in along the marked lines, beveled at 45° on both sides, and then reinforced with packing tape.
Specs:
-Wingspan: 940 mm
-Length: 910 mm
-Weight: approx. 300 g
-Center of Gravity (CG): 90 mm behind the leading edge
Materials needed:
-6 mm Depron
-6 mm × 750 mm CFK tube
-2 mm × 2000 mm CFK rod (2 m)
-ColorFabb LW-PLA
Electronics:
-5 g servos (×4)
-2206 2300 KV motor
-35 A ESC
Flying video:
https://www.instagram.com/p/DSff1j3DTWA
