The X-29 was a NASA research aircraft that fascinated me from the first time I saw it. I decided to draw and build one in the 90 mm EDF size. The 64 mm version was originally intended to determine the correct center of gravity (CG) for this particular wing design. It flew so well that I decided to create a version for sale.
The entire aircraft is printed from ColorFabb LW-PLA and PETG, using a flow rate of 65%, a single-wall gyroid infill of 3%, except for the canards and the PETG elevons, which are printed with 5% infill.
The hinges are made by pushing a 1.75 mm filament rod through the designed hinge channels.
The X-29 is powered by a 64 mm 6S EDF, paired with an 80 A ESC, a 1750 mAh LiPo battery, and three 9 g servos for the elevons and canards.
The neutral position of the canards is indicated by a small hole located in front of each canard.
Minimum Printer Size
250 × 250 × 250 mm
General Specifications
Wingspan: 700 mm
Length: 1200 mm
Flying Weight: Approx. 0.8 kg
Center of Gravity (CG): 170–175 mm aft of the bottom inlet lip
A fun, lightweight sport glider designed for precision aerobatics and pure enjoyment, completely 3D printed from LW-PLA and PETG.
The Swift features fast and secure snap and friction-fit connections on the wings and canopy, allowing for quick and uncomplicated setup at the model airfield.
Minimum printer size: 250 × 250 × 250 mm
General Specs
Wingspan: 2100 mm
Length: 1150 mm
Versions Wings
There are two options for the wings: 2-surface and 4-surface wings (with or without flaps). The flaps can help slow down the glider during landing in both the propeller and pure glider versions.
EDF Glider
The EDF version is designed for the Freewing 64 mm 6S setup. I fly it with an 80A ESC and a 1700 mAh 95C 6S LiPo. For launching, I suggest using a launch cart. The high-mounted EDF can overpower the elevator when airspeed is insufficient.
Flying weight: approx. 1.7 kg
Propeller Glider
The propeller version is designed for simple use at airfields or in the mountains. It uses a 3S power setup with an 11×8 folding propeller, delivering sufficient climbing performance. Hand-launching is easy and comfortable. The motor mount can accommodate any motor with a maximum outer diameter of 33 mm.
Flying weight: approx. 1 kg
Pure Glider Version
This version does not feature a power plant. It is designed for mountain soaring or to be towed by another plane—or any other creative way to gain altitude.
Flying weight: approx. 800 g
Build Instructions
I used ColorFabb LW-PLA with 65% flow. All parts are single-wall printed with 3% infill, except for all rudder surfaces, which are printed with 5% infill. The PETG skid is printed with a double wall to strengthen the fuselage for mountain flying.
The fuselage is built around two CFK rods running the length of the fuselage. Start by gluing these two rods into the tail section, then stack the next parts on top using the rods as alignment and support.
When building the fuselage, make sure to connect the elevator hinge to the elevator before gluing the tail cone, as shown in the picture above.
When building the wing, use a 10 mm × 1000 mm CFK tube to align the sections. The 10 mm tube is glued into each wing side, while the 14 mm tube is removable.
Center of Gravity (CG): 50–45 mm aft of the leading edge, measured at the wing break.
Materials Needed
2 m × 10 mm CFK tube, cut into 2 × 1000 mm front wing tubes
1 m × 14 mm CFK tube, main wing tube
5 m × 2 mm CFK rod for linkages, hinges, and fuselage strengthening (2 × 660 mm)
This indoor Edge is a fun and quick project for the winter season. The fuselage is 3D-printed from ColorFabb LW-PLA at 65% flow. The infill used is specified in the name of each respective part. The wings and rudder are made from 6 mm Depron foam and reinforced with a 6 mm CFK tube. The plane is powered by a Racing Drone 2206 2300 KV motor on a 35 A ESC with a 3S 500 mAh battery and uses four 5 g servos.
I suggest reinforcing the motor plate with plywood.
The hinges are cut in along the marked lines, beveled at 45° on both sides, and then reinforced with packing tape.
Specs:
-Wingspan: 940 mm
-Length: 910 mm
-Weight: approx. 300 g
-Center of Gravity (CG): 90 mm behind the leading edge

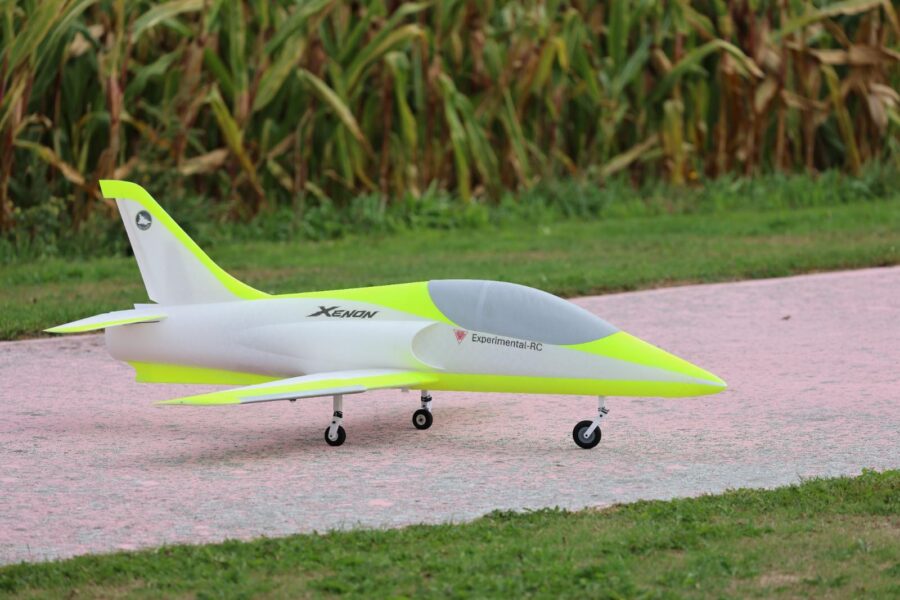

A fun, lightweight 90mm EDF sport jet designed for precision aerobatics, completely 3D printed from LW-PLA and PETG.
The Xenon features multiple fast and secure snap connections on the wings and canopy. These allow for a quick and uncomplicated setup at the model airfield.
Specifications:
Wingspan: 1380 mm
Length: 1670 mm
Flying Weight: ~3.6 kg
Power Setup: 90 mm EDF, 90A ESC, 5300 mAh 6S LiPo
Build:
I used ColorFabb LW-PLA with 65% flow. The infill used is specified in the name of each respective part.
Minimum Printer size 250X250X250mm
We recommend a Freewing Landing gear with 50 mm tires on the main gear.
Center of Gravity (CG): 130 mm aft of the leading edge, measured at the wing break.
Materials needed:
2 m × 10 mm CFK tube, cut into 2 × 610 mm and 2 × 390 mm
4 m × 2 mm CFK rod for linkages and hinges
1 m × 5 mm CFK tube, cut into 2 × 200 mm for elevator reinforcement
